Disambiguation of SO/PHI data and magnetic field Heliographic components#

This example shows how to use a disambiguation file for SO/PHI magnetic field data. The disambigation files (with descriptor bamb) are not yet released in SOAR, but they are all avaible on request.

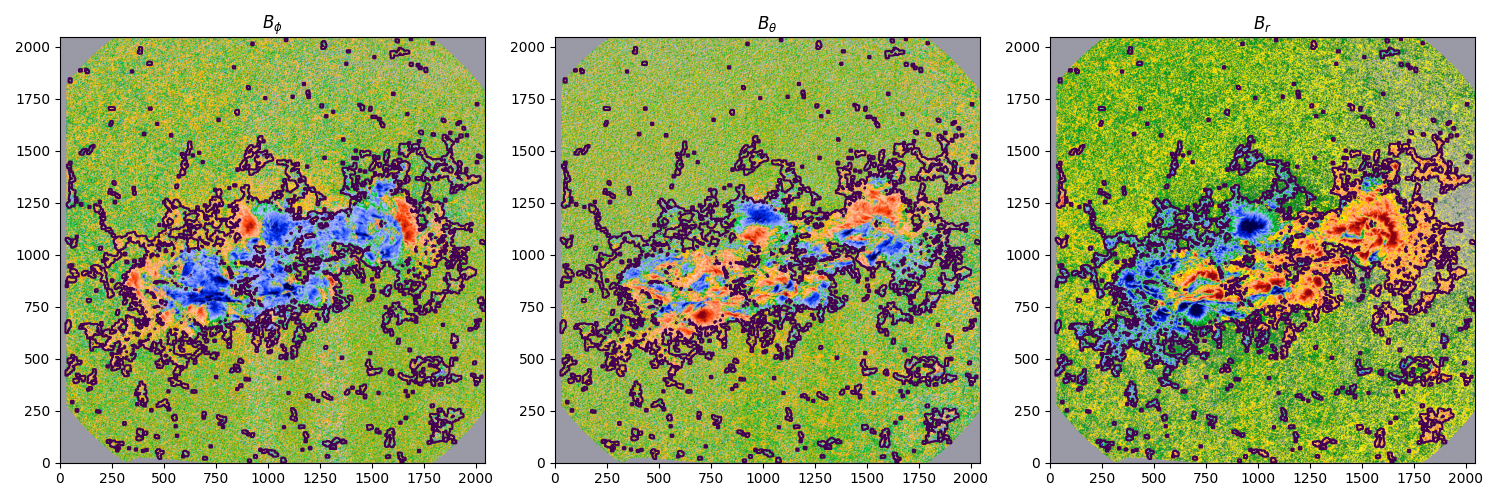

After the disambiguation of the magnetic field azimuth, we will compute the Heliographic componenets (Gary and Hagyard 1990, Sun 2022) of the magnetic field, namely \(B_{\phi}\), \(B_{\theta}\), and \(B_r\).

Download SO/PHI data#

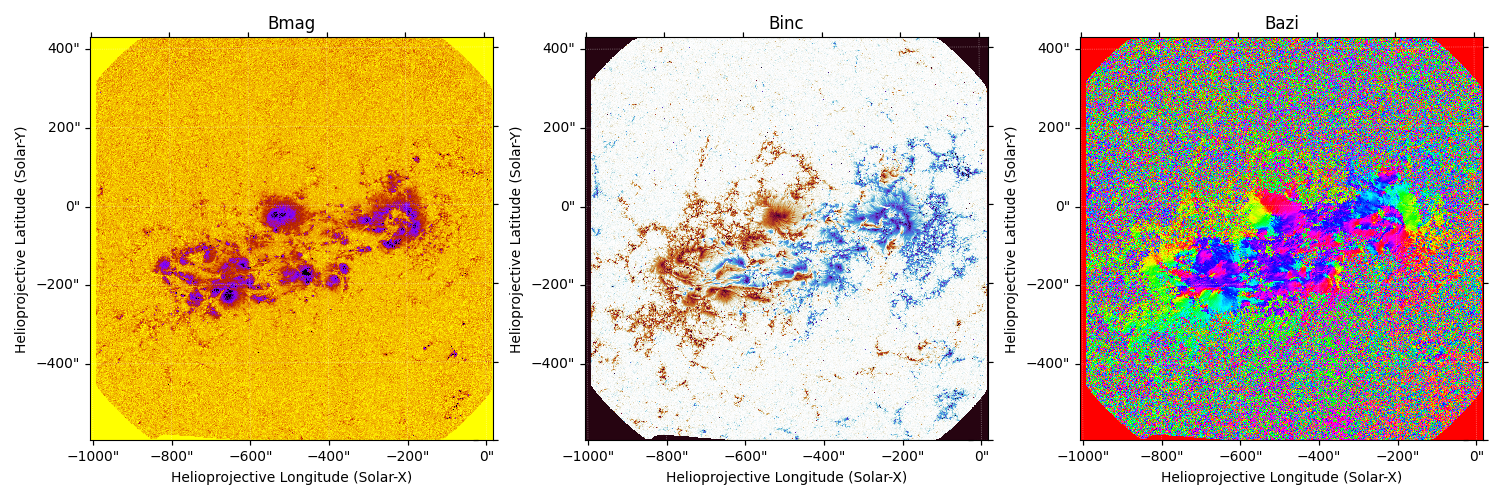

Dowanload the magnetic field strength (bmag), inclination (binc), and azimuth (bazi) from the SOAR.

import sunpy_soar
from sunpy.net import Fido, attrs as a
from astropy.time import Time
import sunpy.map
import sunpy.visualization.colormaps
import matplotlib.pyplot as plt
import numpy as np
import cmasher as cmr
from astropy.io import fits

import warnings, sunpy
warnings.filterwarnings("ignore", category=sunpy.util.SunpyMetadataWarning)

Loading the data from SOAR

t_start_hrt = Time('2024-03-23T22:29', format='isot', scale='utc')
t_end_hrt = Time('2024-03-23T22:32', format='isot', scale='utc')

search_results_phi_hrt = Fido.search(a.Instrument('PHI'), a.Time(t_start_hrt.value, t_end_hrt.value), a.soar.Product('phi-hrt-bmag') | a.soar.Product('phi-hrt-binc') | a.soar.Product('phi-hrt-bazi'))
print(search_results_phi_hrt)

file_phi_bmag = Fido.fetch(search_results_phi_hrt[0])
file_phi_binc = Fido.fetch(search_results_phi_hrt[1])
file_phi_bazi = Fido.fetch(search_results_phi_hrt[2])

bmag = sunpy.map.Map(file_phi_bmag[0])
binc = sunpy.map.Map(file_phi_binc[0])
bazi = sunpy.map.Map(file_phi_bazi[0])

Results from 3 Providers:

1 Results from the SOARClient:

Instrument Data product Level        Start time               End time        Filesize          SOOP Name           Detector Wavelength
                                                                               Mbyte
---------- ------------ ----- ----------------------- ----------------------- -------- ---------------------------- -------- ----------
       PHI phi-hrt-bmag    L2 2024-03-23 22:30:09.921 2024-03-23 22:31:35.697   17.001 L_BOTH_HRES_HCAD_Major-Flare      HRT   6173.341

1 Results from the SOARClient:

Instrument Data product Level        Start time               End time        Filesize          SOOP Name           Detector Wavelength
                                                                               Mbyte
---------- ------------ ----- ----------------------- ----------------------- -------- ---------------------------- -------- ----------
       PHI phi-hrt-binc    L2 2024-03-23 22:30:09.921 2024-03-23 22:31:35.697   17.001 L_BOTH_HRES_HCAD_Major-Flare      HRT   6173.341

1 Results from the SOARClient:

Instrument Data product Level        Start time               End time        Filesize          SOOP Name           Detector Wavelength
                                                                               Mbyte
---------- ------------ ----- ----------------------- ----------------------- -------- ---------------------------- -------- ----------
       PHI phi-hrt-bazi    L2 2024-03-23 22:30:09.921 2024-03-23 22:31:35.697   17.001 L_BOTH_HRES_HCAD_Major-Flare      HRT   6173.341
