WCS coordinates in SO/PHI-HRT Data#
This example shows how to check the WCS in the SO/PHI-HRT header and how to possibly correct them. The data released to SOAR since 2025 hasbetter WCS thanks to a correlation with SO/PHI-FDT data, when possible.
The source of the error in the WCS is the focus mechanism of SO/PHI-HRT, the boresight of the instrument, and the small variations fo the latter with temperature and pointing, which is not fully understood yet.
This example shows how to correct the WCS using magnetograms, but it can be run with continuum images too. Other quantities, such as the magnetic field strength, could work, but some functions would need to be re-adapted.
Download SO/PHI-HRT magnetogram#
The easiest way to check the WCS of SO/PHI-HRT is by overlaying the data on a SO/PHI-FDT map or, if available, on a SDO/HMI map (also on JHelioviewer).
import sunpy_soar
from sunpy.net import Fido, attrs as a
from astropy.time import Time
import sunpy.map
import sunpy.visualization.colormaps
import matplotlib.pyplot as plt
import numpy as np
from astropy import units as u
from astropy.coordinates import SkyCoord
from sunpy.coordinates import SphericalScreen
import datetime
import os
import warnings, sunpy
warnings.filterwarnings("ignore", category=sunpy.util.SunpyMetadataWarning)
Loading the data from SOAR
t_start_hrt = Time('2024-03-23T20:00', format='isot', scale='utc')
t_end_hrt = Time('2024-03-23T23:59', format='isot', scale='utc')
search_results_phi_hrt = Fido.search(a.Instrument('PHI'), a.Time(t_start_hrt.value, t_end_hrt.value), a.soar.Product('phi-hrt-blos'))
files_phi_hrt = Fido.fetch(search_results_phi_hrt[0, 0])
hrt_map = sunpy.map.Map(files_phi_hrt[0])
original_header = hrt_map.fits_header.copy()
Files Downloaded: 0%| | 0/1 [00:00<?, ?file/s]
Files Downloaded: 100%|██████████| 1/1 [00:00<00:00, 3.19file/s]
Files Downloaded: 100%|██████████| 1/1 [00:00<00:00, 3.19file/s]
Correction of CROTA by 0.15 degrees (known value)
def rotate_header(h,angle,center = [1024.5,1024.5]):
"""calculate new header when image is rotated by a fixed angle
Parameters
----------
h : astropy.io.fits.header.Header
header of image to be rotated
angle : float
angle to rotate image by (in degrees)
center : list or numpy.array
center of rotation (x,y) in pixel, Default is [1024.5,1024.5]
Returns
-------
h: astropy.io.fits.header.Header
new header
"""
if 'CROTA' in h:
k = 'CROTA' # positive angle = clock-wise rotation of the reference system axes
else:
k = 'CROTA2'
h[k] -= angle
h['PC1_1'] = np.cos(h[k]*np.pi/180)
h['PC1_2'] = -np.sin(h[k]*np.pi/180)
h['PC2_1'] = np.sin(h[k]*np.pi/180)
h['PC2_2'] = np.cos(h[k]*np.pi/180)
rad = angle * np.pi/180
rot = np.asarray([[np.cos(rad),-np.sin(rad),0],[np.sin(rad),np.cos(rad),0],[0,0,1]])
coords = np.asarray([h['CRPIX1'],h['CRPIX2'],1])
# center = [1024.5,1024.5] # CRPIX from 1 to 2048, so 1024.5 is the center
tr = np.asarray([[1,0,center[0]],[0,1,center[1]],[0,0,1]])
invtr = np.asarray([[1,0,-center[0]],[0,1,-center[1]],[0,0,1]])
M = tr @ rot @ invtr
bl = M @ np.asarray([0,0,1])
tl = M @ np.asarray([0,2048,1])
br = M @ np.asarray([2048,0,1])
tr = M @ np.asarray([2048,2048,1])
O = -np.asarray([bl,tl,br,tr]).min(axis=0)[:-1]
newO = np.asarray([[1,0,O[0]+1],[0,1,O[1]+1],[0,0,1]])
newM = newO @ M
new_coords = newM @ coords
h['CRPIX1'] = round(new_coords[0],4)
h['CRPIX2'] = round(new_coords[1],4)
return h
def center_coord(hdr):
"""calculate the center of the solar disk in the rotated reference system
Parameters
----------
hdr : header
header of the fits file
Returns
-------
center: [x,y,1] coordinates of the solar disk center (units: pixel)
"""
pxsc = hdr['CDELT1']
crval1 = hdr['CRVAL1']
crval2 = hdr['CRVAL2']
crpix1 = hdr['CRPIX1']
crpix2 = hdr['CRPIX2']
if 'PC1_1' in hdr:
PC1_1 = hdr['PC1_1']
PC1_2 = hdr['PC1_2']
PC2_1 = hdr['PC2_1']
PC2_2 = hdr['PC2_2']
else:
if 'CROTA2' in hdr:
CROTA = hdr['CROTA2']
else:
CROTA = hdr['CROTA']
PC1_1 = np.cos(CROTA*np.pi/180)
PC1_2 = -np.sin(CROTA*np.pi/180)
PC2_1 = np.sin(CROTA*np.pi/180)
PC2_2 = np.cos(CROTA*np.pi/180)
HPC1 = 0
HPC2 = 0
x0 = crpix1 + 1/pxsc * (PC1_1*(HPC1-crval1) - PC1_2*(HPC2-crval2)) - 1
y0 = crpix2 + 1/pxsc * (PC2_2*(HPC2-crval2) - PC2_1*(HPC1-crval1)) - 1
return np.asarray([x0,y0,1])
crota_manual_correction=0.15
h_hrt = rotate_header(original_header.copy(),-crota_manual_correction, center=center_coord(original_header))
hrt_map = sunpy.map.Map((hrt_map.data,h_hrt))
Download the closest SDO/HMI magnetogram in time#
Replace os.environ["JSOC_EMAIL"] with your email address registered on JSOC, or set it in your .bashrc file as export JSOC_EMAIL=your.account@email.com.
def downloadClosestHMI(ht,jsoc_email,path=False,cad='45'):
"""
Script to download the HMI m_45 or ic_45 cosest in time to the provided SO/PHI observation.
TAI convention and light travel time are taken into consideration.
Parameters
----------
ht: astropy.io.fits.header.Header
header of the SO/PHI observation
jsoc_email: str
email address to be used for JSOC connection
path: bool
if True, the path of the cache directory and of the HMI dataset will return as output (DEFAULT: False)
cad: str
cadence of the HMI data to be downloaded ('45' and '720' are accepted, DEFAULT: '45')
Returns
-------
hmi_map: sunpy.ma.Map
HMI map of the closest data set to the SO/PHI observation
cache_dir: str
path to sunpy cache directory (if path = True)
hmi_name: str
path to the downloaded SDO/HMI file (if path = True)
"""
import drms
import sunpy, sunpy.map
from astropy.constants import c
from astropy import units as u
t_obs = datetime.datetime.fromisoformat(ht['DATE-AVG'])
dtai = datetime.timedelta(seconds=37) # datetime.timedelta(seconds=94)
if type(cad) != str:
cad = str(int(cad))
if cad == '45':
dcad = datetime.timedelta(seconds=35) # half HMI cadence (23) + margin
elif cad == '720':
dcad = datetime.timedelta(seconds=360+60) # half HMI cadence (23) + margin
else:
print('wrong HMI cadence, only 45 and 720 are accepted')
return None
dltt = datetime.timedelta(seconds=ht['EAR_TDEL']) # difference in light travel time S/C-Earth
kwlist = ['T_REC','T_OBS','DATE-OBS','CADENCE','DSUN_OBS']
client = drms.Client(email=jsoc_email)
lt = np.nan
n = 0
while np.isnan(lt):
n += 2
# not implemented for 720s cadence specific data products, yet!
if ht['PHIDTYPE'] == 'blos':
keys = client.query('hmi.m_'+cad+'s['+(t_obs+dtai-dcad+dltt).strftime('%Y.%m.%d_%H:%M:%S')+'-'+
(t_obs+dtai+dcad+dltt).strftime('%Y.%m.%d_%H:%M:%S')+']',seg=None,key=kwlist,n=n)
elif ht['PHIDTYPE'] == 'vlos':
keys = client.query('hmi.v_'+cad+'s['+(t_obs+dtai-dcad+dltt).strftime('%Y.%m.%d_%H:%M:%S')+'-'+
(t_obs+dtai+dcad+dltt).strftime('%Y.%m.%d_%H:%M:%S')+']',seg=None,key=kwlist,n=n)
else:
keys = client.query('hmi.ic_'+cad+'s['+(t_obs+dtai-dcad+dltt).strftime('%Y.%m.%d_%H:%M:%S')+'-'+
(t_obs+dtai+dcad+dltt).strftime('%Y.%m.%d_%H:%M:%S')+']',seg=None,key=kwlist,n=n)
keys = keys[keys['T_OBS'] != 'MISSING']
if np.size(keys['T_OBS']) > 0:
lt = (np.nanmean(keys['DSUN_OBS'])*u.m - ht['DSUN_OBS']*u.m)/c
else:
print('adding 60s margin')
dcad += datetime.timedelta(seconds=60)
dltt = datetime.timedelta(seconds=lt.value) # difference in light travel time S/C-SDO
T_OBS = [(ind,np.abs((datetime.datetime.strptime(t,'%Y.%m.%d_%H:%M:%S_TAI') - dtai - dltt - t_obs).total_seconds())) for ind, t in zip(keys.index,keys['T_OBS'])]
ind = T_OBS[np.argmin([t[1] for t in T_OBS])][0]
if ht['PHIDTYPE'] == 'blos':
name_h = 'hmi.m_'+cad+'s['+keys['T_REC'][ind]+']{Magnetogram}'
elif ht['PHIDTYPE'] == 'vlos':
name_h = 'hmi.v_'+cad+'s['+keys['T_REC'][ind]+']{Dopplergram}'
else:
name_h = 'hmi.ic_'+cad+'s['+keys['T_REC'][ind]+']{Continuum}'
if np.abs((datetime.datetime.strptime(keys['T_OBS'][ind],'%Y.%m.%d_%H:%M:%S_TAI') - dtai - dltt - t_obs).total_seconds()) > np.ceil(int(cad)/2):
print('WARNING: Closer file exists but has not been found.')
print(name_h)
print('T_OBS:',datetime.datetime.strptime(keys['T_OBS'][ind],'%Y.%m.%d_%H:%M:%S_TAI') - dtai - dltt)
print('DATE-AVG:',t_obs)
print('')
else:
print('HMI T_OBS (corrected for TAI and Light travel time):',datetime.datetime.strptime(keys['T_OBS'][ind],'%Y.%m.%d_%H:%M:%S_TAI') - dtai - dltt)
print('PHI DATE-AVG:',t_obs)
s45 = client.export(name_h,protocol='fits')
hmi_map = sunpy.map.Map(s45.urls.url[0],cache=False)
cache_dir = sunpy.data.CACHE_DIR+'/'
hmi_name = cache_dir + s45.urls.url[0].split("/")[-1]
if path:
return hmi_map, cache_dir, hmi_name
else:
return hmi_map
hmi_map = downloadClosestHMI(hrt_map.fits_header,os.environ["JSOC_EMAIL"],path=False,cad='45')
HMI T_OBS (corrected for TAI and Light travel time): 2024-03-23 22:30:59.064431
PHI DATE-AVG: 2024-03-23 22:30:52.809000
Files Downloaded: 0%| | 0/1 [00:00<?, ?file/s]
hmi.m_45s.20240323_223645_TAI.2.magnetogram.fits: 0%| | 0.00/16.7M [00:00<?, ?B/s]
hmi.m_45s.20240323_223645_TAI.2.magnetogram.fits: 0%| | 1.02k/16.7M [00:00<1:25:45, 3.24kB/s]
hmi.m_45s.20240323_223645_TAI.2.magnetogram.fits: 3%|▎ | 491k/16.7M [00:00<00:10, 1.51MB/s]
hmi.m_45s.20240323_223645_TAI.2.magnetogram.fits: 13%|█▎ | 2.15M/16.7M [00:00<00:02, 6.05MB/s]
hmi.m_45s.20240323_223645_TAI.2.magnetogram.fits: 52%|█████▏ | 8.62M/16.7M [00:00<00:00, 23.7MB/s]
Files Downloaded: 100%|██████████| 1/1 [00:01<00:00, 1.17s/file]
Files Downloaded: 100%|██████████| 1/1 [00:01<00:00, 1.17s/file]

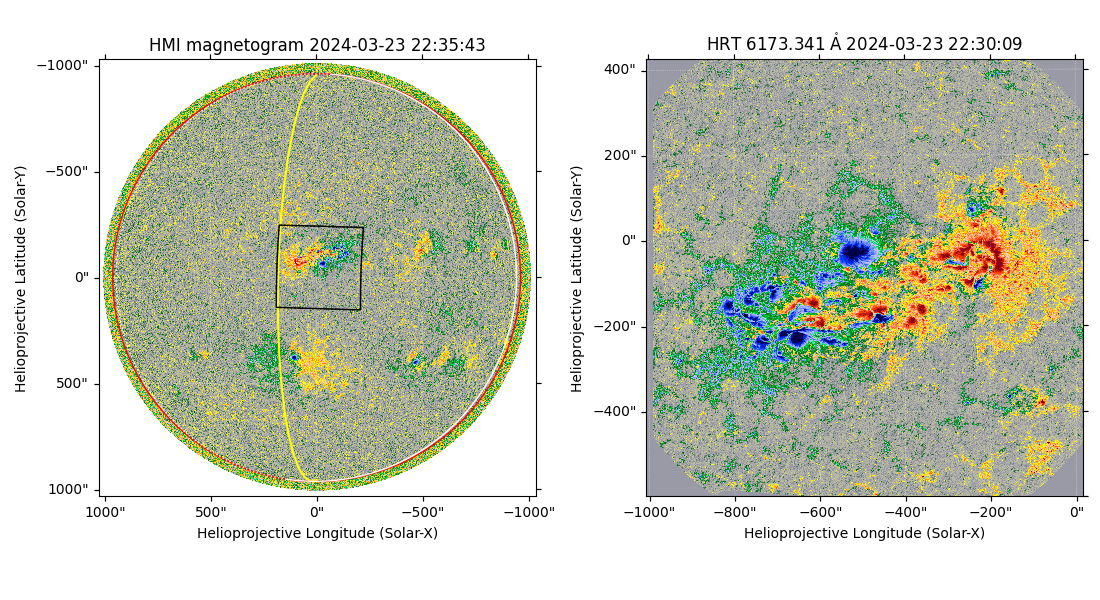

Plotting the results of the Downloads#
plt.figure(figsize=(11,6))
ax = plt.subplot(121,projection=hmi_map)
hmi_map.plot(clim=(-1500,1500),cmap='hmimag', axes=ax)
hmi_map.draw_limb(color='r')
hrt_map.draw_limb(color='w')
constant_lon = SkyCoord(hrt_map.observer_coordinate.lon, np.linspace(-90, 90, 20) * u.deg,
frame=hmi_map.observer_coordinate)
plt.gca().plot_coord(constant_lon, color="yellow")
with SphericalScreen(hrt_map.observer_coordinate, only_off_disk=True):
hrt_map.draw_extent(axes=ax, color='k', lw=1, ls='dotted')
hrt_map.draw_extent(axes=ax, color='k', lw=1)
ax = plt.subplot(122,projection=hrt_map)
hrt_map.plot(clim=(-1500,1500),cmap='hmimag', axes=ax)
plt.tight_layout()
plt.show()

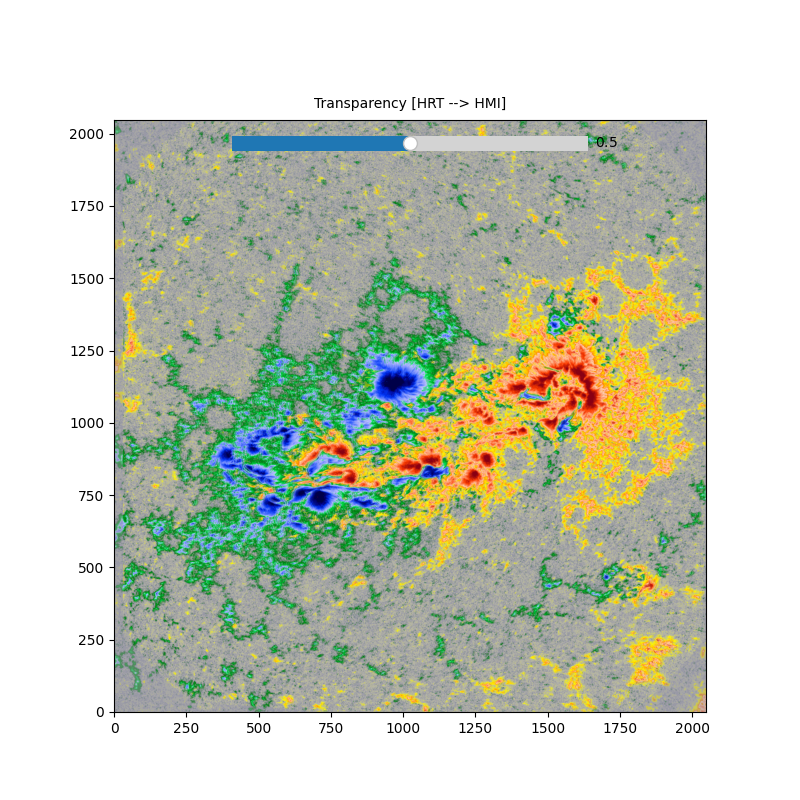

Overplot HMI on SO/PHI-HRT#
from matplotlib.widgets import Slider
from mpl_toolkits.axes_grid1.inset_locator import inset_axes
# Create the figure and axes
fig, ax = plt.subplots(figsize=(8,8))
plt.subplots_adjust(top=0.85)
# Display the first image
img1 = ax.imshow(hrt_map.data, cmap='hmimag', clim=(-1500,1500), origin='lower')
hmi_remap = hmi_map.reproject_to(hrt_map.wcs)
# Display the second image with initial alpha
img2 = ax.imshow(hmi_remap.data, cmap='hmimag', clim=(-1500,1500), origin='lower', alpha=0.5)
# Create slider axis and slider
slider_ax = inset_axes(ax, width="60%", height="5%", loc='upper center', borderpad=0.6)
slider = Slider(slider_ax, '', 0.0, 1.0, valinit=0.5)
label_text = slider_ax.text(0.5, 1.6, 'Transparency [HRT --> HMI]', transform=slider_ax.transAxes,
ha='center', va='bottom', fontsize=10)
# Update function for the slider
def update(val):
alpha = slider.val
img2.set_alpha(alpha)
fig.canvas.draw_idle()
slider.on_changed(update)
plt.show()
/home/docs/checkouts/readthedocs.org/user_builds/solar-orbiter-docs/envs/latest/lib/python3.12/site-packages/sunpy/map/mapbase.py:3201: SunpyUserWarning: rsun mismatch detected: HMI magnetogram 2024-03-23 22:35:43.rsun_meters=696000000.0 m; 2024-03-23 22:30:09.rsun_meters=695700000.0 m. This might cause unexpected results during reprojection.
warn_user("rsun mismatch detected: "

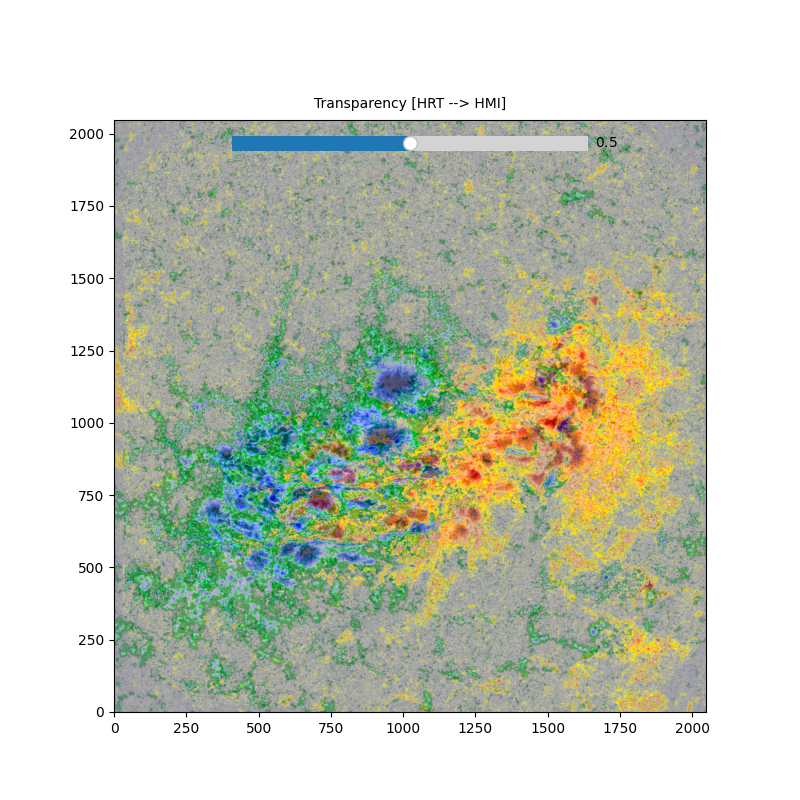

The maps are clearly not aligned, you can see two negative (blue) sunspots in the center of the image instead of one.
Check if the WCS by HRT have been updated#
HISTORY will show if the WCS have been updated or not
hist = hrt_map.fits_header['HISTORY']
for line in hist:
if 'WCS' in line:
print(line)
WCS not updated by HRT pipeline. Issue during the correction. S/W versio
Functions needed#
We define a remap function to keep the header infomration we want when remapping
def remap(ref_map, temp_map, out_shape = None, verbose = False):
"""
reproject hmi map onto hrt with hrt pixel size and observer coordinates
from SO/PHI-HRT pipeline
Parameters
----------
ref_map : sunpy.map.GenericMap
reference map
temp_map : sunpy.map.GenericMap
map to be remapped
out_shape : tuple, None
shape of output map, if None the out_shape is the shape of ref_map (Default: None)
Returns
-------
temp_remap : sunpy.map.GenericMap
remapped hmi map
"""
import sunpy.map
from reproject import reproject_adaptive
from sunpy.coordinates import propagate_with_solar_surface
from astropy.wcs import WCS
if out_shape is None:
out_shape = ref_map.data.shape
# define new header for hmi map using hrt observer coordinates
with propagate_with_solar_surface():
out_header = sunpy.map.make_fitswcs_header(
out_shape,
ref_map.reference_coordinate.replicate(rsun=temp_map.reference_coordinate.rsun),
scale=u.Quantity(ref_map.scale),
instrument=temp_map.instrument,
observatory=temp_map.observatory,
wavelength=temp_map.wavelength
)
out_header['dsun_obs'] = ref_map.coordinate_frame.observer.radius.to(u.m).value
out_header['hglt_obs'] = ref_map.coordinate_frame.observer.lat.value
out_header['hgln_obs'] = ref_map.coordinate_frame.observer.lon.value
out_header['detector'] = temp_map.detector
out_header['crpix1'] = ref_map.fits_header['CRPIX1']
out_header['crpix2'] = ref_map.fits_header['CRPIX2']
out_header['crval1'] = ref_map.fits_header['CRVAL1']
out_header['crval2'] = ref_map.fits_header['CRVAL2']
if 'CROTA' in ref_map.fits_header:
key = 'CROTA'
else:
key = 'CROTA2'
out_header[key] = ref_map.fits_header[key]
if 'PC1_1' in ref_map.fits_header:
out_header['PC1_1'] = ref_map.fits_header['PC1_1']
out_header['PC1_2'] = ref_map.fits_header['PC1_2']
out_header['PC2_1'] = ref_map.fits_header['PC2_1']
out_header['PC2_2'] = ref_map.fits_header['PC2_2']
else:
out_header['PC1_1'] = np.cos(ref_map.fits_header[key]*np.pi/180)
out_header['PC1_2'] = -np.sin(ref_map.fits_header[key]*np.pi/180)
out_header['PC2_1'] = np.sin(ref_map.fits_header[key]*np.pi/180)
out_header['PC2_2'] = np.cos(ref_map.fits_header[key]*np.pi/180)
out_wcs = WCS(out_header)
# reprojection
temp_origin = temp_map
output, _ = reproject_adaptive(temp_origin, out_wcs, out_shape,kernel='Hann',boundary_mode='ignore')
temp_remap = sunpy.map.Map((output, out_header))
temp_remap.plot_settings = temp_origin.plot_settings
return temp_remap
Function to compute the shift with sub-pixel accuracy
def circular_mask(h, w, center, radius):
"""create a circular mask
Parameters
----------
h : int
height of the mask
w : int
width of the mask
center : [x,y]
center of the mask
radius : float
radius of the mask
Returns
-------
mask: 2D array
mask with 1 inside the circle and 0 outside
"""
Y, X = np.ogrid[:h, :w]
dist_from_center = np.sqrt((X - center[0])**2 + (Y-center[1])**2)
mask = dist_from_center <= radius
return mask
def image_register(ref,im,subpixel=True,deriv=False,d=50,verbose=False):
"""
Computes shift between two maps with sub-pixel accuracy by fitting a gaussian on the cross-correlation map
from SO/PHI-HRT pipeline
Parameters
----------
ref: numpy.array
reference image
im: numpy.array
image to be registered
subpixel: bool
if True, the shift is computed with sub-pixel accuracy. Default: True
deriv: bool
if True, the derivative of the images are used to compute the shift. Default: False
d: int
radius of the mask used to fit the gaussian when subpixel is True. It is updated if the fit fails. Default: 50
verbose: bool
if True, print information about fitting process. Default: False
Returns
-------
r: numpy.array
cross-correlation map
shifts: list
[y,x] shifts etween the images in pixel units
"""
try:
import pyfftw.interfaces.numpy_fft as fft
except:
import numpy.fft as fft
def _image_derivative(d):
import numpy as np
from scipy.signal import convolve
kx = np.asarray([[1,0,-1], [1,0,-1], [1,0,-1]])
ky = np.asarray([[1,1,1], [0,0,0], [-1,-1,-1]])
kx=kx/3.
ky=ky/3.
SX = convolve(d, kx,mode='same')
SY = convolve(d, ky,mode='same')
A=SX**2+SY**2
return A
def _g2d(X, offset, amplitude, sigma_x, sigma_y, xo, yo, theta):
import numpy as np
(x, y) = X
xo = float(xo)
yo = float(yo)
a = (np.cos(theta)**2)/(2*sigma_x**2) + (np.sin(theta)**2)/(2*sigma_y**2)
b = -(np.sin(2*theta))/(4*sigma_x**2) + (np.sin(2*theta))/(4*sigma_y**2)
c = (np.sin(theta)**2)/(2*sigma_x**2) + (np.cos(theta)**2)/(2*sigma_y**2)
g = offset + amplitude*np.exp( - (a*((x-xo)**2) + 2*b*(x-xo)*(y-yo)
+ c*((y-yo)**2)))
return g.ravel()
def _gauss2dfit(a,mask):
import numpy as np
from scipy.optimize import curve_fit
sz = np.shape(a)
X,Y = np.meshgrid(np.arange(sz[1])-sz[1]//2,np.arange(sz[0])-sz[0]//2)
c = np.unravel_index(a.argmax(),sz)
Xf = X[mask>0]; Yf = Y[mask>0]; af = a[mask>0]
stdx = .5
stdy = .5
initial_guess = [np.median(a), np.max(a), stdx, stdy, c[1] - sz[1]//2, c[0] - sz[0]//2, 0]
bounds = ([-1,-1,0,0,initial_guess[4]-1,initial_guess[5]-1,-180],
[1,1,initial_guess[2]*4,initial_guess[2]*4,initial_guess[4]+1,initial_guess[5]+1,180])
popt, pcov = curve_fit(_g2d, (Xf, Yf), af.ravel(), p0=initial_guess,bounds=bounds)
return np.reshape(_g2d((X,Y), *popt), sz), popt
def _one_power(array):
return array/np.sqrt((np.abs(array)**2).mean())
if deriv:
ref = _image_derivative(ref - np.mean(ref))
im = _image_derivative(im - np.mean(im))
shifts=np.zeros(2)
FT1=fft.fftn(ref - np.mean(ref))
FT2=fft.fftn(im - np.mean(im))
ss=np.shape(ref)
r=np.real(fft.ifftn(_one_power(FT1) * _one_power(FT2.conj())))
r = fft.fftshift(r)
rmax=np.max(r)
ppp = np.unravel_index(np.argmax(r),ss)
shifts = [ppp[0]-ss[0]//2,ppp[1]-ss[1]//2]
if subpixel:
dd = [d,75,100,30]
for d1 in dd:
try:
if d1>0:
mask = circular_mask(ss[0],ss[1],[ppp[1],ppp[0]],d1)
else:
mask = np.ones(ss,dtype=bool); d = ss[0]//2
g, A = _gauss2dfit(r,mask)
break
except RuntimeError as e:
if verbose: print(f"Issue with gaussian fitting using mask with radius {d1}\nTrying new value...")
if d1 == dd[-1]:
raise RuntimeError(e)
shifts[0] = A[5]
shifts[1] = A[4]
del g
del FT1, FT2
return r, shifts
Function to translate the header CRPIX or CRVAL by a certain amount of pixels
def translate_header(h,tvec,mode='crpix'):
"""calculate new header when image is translated by a fixed vector
Parameters
----------
h : astropy.io.fits.header.Header
header of image to be translated
tvec : list
vector to translate image by (in pixels) [y,x]
mode : str
if 'crpix' (Default) the shift will be applied to CRPIX*, if 'crval' the shift will be applied to CRVAL*
Returns
-------
h: astropy.io.fits.header.Header
new header
"""
if mode == 'crval':
tr = np.asarray([[1,0,-tvec[1]],[0,1,-tvec[0]],[0,0,1]])
if 'CROTA' in h:
angle = h['CROTA'] # positive angle = clock-wise rotation of the reference system axes
else:
angle = h['CROTA2']
rad = angle * np.pi/180
vec = np.asarray([tvec[1],tvec[0],1])
rot = np.asarray([[np.cos(rad),-np.sin(rad),0],[np.sin(rad),np.cos(rad),0],[0,0,1]])
shift = rot @ vec
shift[0] *= h['CDELT1']
shift[1] *= h['CDELT2']
h['CRVAL1'] = round(h['CRVAL1']-shift[0],4)
h['CRVAL2'] = round(h['CRVAL2']-shift[1],4)
elif mode == 'crpix':
tr = np.asarray([[1,0,tvec[1]],[0,1,tvec[0]],[0,0,1]])
coords = np.asarray([h['CRPIX1'],h['CRPIX2'],1])
new_coords = tr @ coords
h['CRPIX1'] = round(new_coords[0],4)
h['CRPIX2'] = round(new_coords[1],4)
else:
print('mode not valid\nreturn old header')
return h
Function to shift an image by applying a phase shift in Fourier space
def fft_shift(img,shift):
"""Shift an image in the Fourier domain and return the shifted image (non fourier domain)
Parameters
----------
img : 2D-image
2D-image to be shifted
shift : list
[dy,dx] shift in pixel
Returns
-------
img_shf : 2D-image
shifted image
"""
try:
import pyfftw.interfaces.numpy_fft as fft
except:
import numpy.fft as fft
sz = img.shape
ky = fft.ifftshift(np.linspace(-np.fix(sz[0]/2),np.ceil(sz[0]/2)-1,sz[0]))
kx = fft.ifftshift(np.linspace(-np.fix(sz[1]/2),np.ceil(sz[1]/2)-1,sz[1]))
img_fft = fft.fft2(img)
shf = np.exp(-2j*np.pi*(ky[:,np.newaxis]*shift[0]/sz[0]+kx[np.newaxis]*shift[1]/sz[1]))
img_fft *= shf
img_shf = fft.ifft2(img_fft).real
return img_shf
WCS correction#
This is an iterative procedure in which the remapped HMI and HRT are cross-correlated to sub-pixel levels. Once the shift is found, the HRT header is updated by the shift and HMI is reprojected on the new WCS set. This new map is then correlated again to find the new shift. This whole procedure runs until the shift is smaller than a given threshold.
First step, we rotate the SDO/HMI dataset to the same CROTA as SO/PHI-HRT
hmi_map_rot = hmi_map.rotate((hmi_map.fits_header['CROTA2']-hrt_map.fits_header['CROTA'])*u.deg,method='opencv')
Then, we select a region of the SO/PHI-HRT FoV, big enough to avoid the feature to be out of the FoV. You can also choose the whole FoV.
fov = (slice(512,1536),slice(512,1536)) # (y,x)
ht = hrt_map.fits_header
hrt_data = hrt_map.data.copy()
hrt_map = hrt_map.submap(np.asarray([fov[1].start, fov[0].start])*u.pix,
top_right=np.asarray([fov[1].stop-1, fov[0].stop-1])*u.pix)
Iterative procedure
from sunpy.coordinates import Helioprojective
from sunpy.coordinates import propagate_with_solar_surface
t0 = ht['DATE-AVG']
t_obs = datetime.datetime.fromisoformat(ht['DATE-AVG'])
h_hrt = hrt_map.fits_header.copy()
ht['DATE-BEG'] = t0; ht['DATE-OBS'] = t0
shift = [1,1]
i = 0
match = True
max_iterations = 10
THRESHOLD_REMAP = 5E-2
THRESHOLD_SHIFT = 1E-2
h_rot = hmi_map_rot.fits_header
h_rot['CROTA2'] = hrt_map.fits_header['CROTA']
hmi_map_rot = sunpy.map.Map((np.nan_to_num(hmi_map_rot.data,nan=0,posinf=0,neginf=0),h_rot))
while np.any(np.abs(shift)>THRESHOLD_REMAP):
hrt_map = sunpy.map.Map((hrt_map.data.copy(),h_hrt))
with propagate_with_solar_surface():
with SphericalScreen(hmi_map_rot.observer_coordinate, only_off_disk=True):
bl = hrt_map.bottom_left_coord
tr = hrt_map.top_right_coord
top_right = hmi_map_rot.world_to_pixel(tr)
bottom_left = hmi_map_rot.world_to_pixel(bl)
tr_hmi_map = np.array([top_right.x.value,top_right.y.value])
bl_hmi_map = np.array([bottom_left.x.value,bottom_left.y.value])
hmi_submap = hmi_map_rot.submap(bl_hmi_map*u.pix,top_right=tr_hmi_map*u.pix)
# hmi_submap.fits_header['CROTA2'] = hmi_map_rot.fits_header['CROTA2']
hpc_coords = sunpy.map.all_coordinates_from_map(hmi_submap)
mask = ~sunpy.map.coordinate_is_on_solar_disk(hpc_coords)
tt = hmi_submap.data; tt[mask==1] = 0
hmi_submap = sunpy.map.Map((tt,hmi_submap.fits_header)); del tt
hrt_remap = remap(hmi_submap, hrt_map)
ref = np.nan_to_num(hmi_submap.data.copy(),True,0,0,0)
temp = np.nan_to_num(hrt_remap.data.copy(),True,0,0,0)
s = [1,1]
shift = [0,0]
it = 0
deriv = False
while np.any(np.abs(s)>THRESHOLD_SHIFT) and it<10:
if it == 0:
_,s = image_register(ref,temp,False,deriv)
if np.any(np.abs(s)==0):
_,s = image_register(ref,temp,True,deriv)
else:
_,s = image_register(ref,temp,True,deriv)
shift = [shift[0]+s[0],shift[1]+s[1]]
temp = np.nan_to_num(fft_shift(np.nan_to_num(hrt_remap.data.copy(),True,0,0,0), shift),True,0,0,0)
it += 1
ht = translate_header(ht.copy(),-np.asarray(shift)*hmi_submap.fits_header['CDELT1']/hrt_map.fits_header['CDELT1'] * \
hmi_map_rot.fits_header['DSUN_OBS']/hrt_map.fits_header['DSUN_OBS'],
mode='crval')
h_hrt = translate_header(h_hrt.copy(),-np.asarray(shift)*hmi_submap.fits_header['CDELT1']/hrt_map.fits_header['CDELT1'] * \
hmi_map_rot.fits_header['DSUN_OBS']/hrt_map.fits_header['DSUN_OBS'],
mode='crval')
print(it,'iterations shift (x,y):',round(shift[1],2),round(shift[0],2))
i+=1
if i == max_iterations:
print('Maximum iterations reached:',i)
match = False
break
hrt_map = sunpy.map.Map((hrt_data,ht))
3 iterations shift (x,y): -20.55 -71.43
4 iterations shift (x,y): 2.81 -1.24
2 iterations shift (x,y): 0.05 0.06
2 iterations shift (x,y): 0.01 0.0
Check the result#
from matplotlib.widgets import Slider
from mpl_toolkits.axes_grid1.inset_locator import inset_axes
# Create the figure and axes
fig, ax = plt.subplots(figsize=(8,8))
plt.subplots_adjust(top=0.85)
# Display the first image
img1 = ax.imshow(hrt_map.data, cmap='hmimag', clim=(-1500,1500), origin='lower')
hmi_remap = hmi_map_rot.reproject_to(hrt_map.wcs)
# Display the second image with initial alpha
img2 = ax.imshow(hmi_remap.data, cmap='hmimag', clim=(-1500,1500), origin='lower', alpha=0.5)
# Create slider axis and slider
slider_ax = inset_axes(ax, width="60%", height="5%", loc='upper center', borderpad=0.6)
slider = Slider(slider_ax, '', 0.0, 1.0, valinit=0.5)
label_text = slider_ax.text(0.5, 1.6, 'Transparency [HRT --> HMI]', transform=slider_ax.transAxes,
ha='center', va='bottom', fontsize=10)
# Update function for the slider
def update(val):
alpha = slider.val
img2.set_alpha(alpha)
fig.canvas.draw_idle()
slider.on_changed(update)
plt.show()
/home/docs/checkouts/readthedocs.org/user_builds/solar-orbiter-docs/envs/latest/lib/python3.12/site-packages/sunpy/map/mapbase.py:3201: SunpyUserWarning: rsun mismatch detected: HMI magnetogram 2024-03-23 22:35:43.rsun_meters=696000000.0 m; 2024-03-23 22:30:52.rsun_meters=695700000.0 m. This might cause unexpected results during reprojection.
warn_user("rsun mismatch detected: "
Print Values#
keys = ['PHIDATID', 'CROTA', 'PC1_1', 'PC1_2', 'PC2_1', 'PC2_2', 'CRPIX1', 'CRPIX2', 'CRVAL1', 'CRVAL2']
ends = [',']*(len(keys)-1)+['\n']
cols = ''
for e,k in zip(ends,keys):
cols += k+e
cols_old = ''
for e,k in zip(ends,keys):
cols_old += k+e
for e,k in zip(ends,keys):
v = hrt_map.fits_header[k]
if isinstance(v,str):
cols += v+e
else:
cols += '{:{width}.{prec}f}'.format(v,width=5,prec=3)+e
v = original_header[k]
if isinstance(v,str):
cols_old += v+e
else:
cols_old += '{:{width}.{prec}f}'.format(v,width=5,prec=3)+e
print('New Header')
print(cols)
print('')
print('Old Header')
print(cols_old)
New Header
PHIDATID,CROTA,PC1_1,PC1_2,PC2_1,PC2_2,CRPIX1,CRPIX2,CRVAL1,CRVAL2
0443230201,-0.194,1.000,0.003,-0.003,1.000,1240.426,886.736,-410.219,-251.743
Old Header
PHIDATID,CROTA,PC1_1,PC1_2,PC2_1,PC2_2,CRPIX1,CRPIX2,CRVAL1,CRVAL2
0443230201,-0.344,1.000,0.006,-0.006,1.000,1237.117,883.616,-386.628,-156.247
Total running time of the script: (0 minutes 36.225 seconds)
